Product Overview

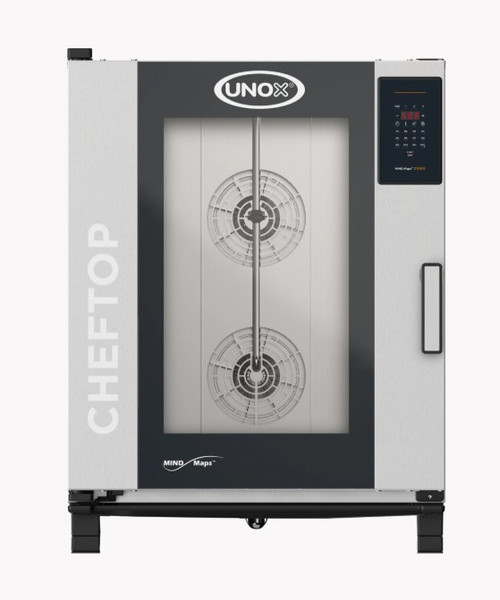

CHEFTOP MIND.Maps™ COUNTERTOP PLUS
Code: XEVC-0311-EPLM
Product speci cations
CHEFTOP MIND.Maps™ PLUS is the intelligent combi oven that grills, fries, roasts, browns, smokes, cooks
with steam and much more. It’s automatic cooking cycles and intelligent functions create impeccable and
consistent results.
Energy e ciency
16 kWh/day - 0 Kg CO2/day
COMMERCIAL OVEN
Product specifications
Trays
Panel
Power supply
3 trays GN 1/1
Dimensions
Width
750 mm
Weight
56 kg
9.5" Touch control panel
Depth
783 mm
Electric
Height
538 mm
Trays speci cations
Number of trays
3
Tray size
GN 1/1
Power supply
*Consumption in kwh and co2
emissions
Voltage
380-415V 3N~ / 220-240V 3~ / 220-240V
1~
Consumption in kWh
16 kWh/day
Electric power
5 kW
Distance between trays
67
Frequency
50 / 60 Hz
CO2 emission
0 Kg CO2/day
The estimate includes only the direct
emissions produced by the oven. Indirect
emissions depend on the energy mix of
the grid to which it is connected; the
latter can be eliminated by choosing to
purchase energy produced from
renewable sources.
Estimated assuming the following weekly
washing programs (42 weeks/year):
1 long wash
1 medium wash
Estimate based on daily use of the oven (300
days/year):
6 light loads of roast chickens (loaded at
20%)
1 full load of roast potatoes
3 full loads cooking with steam
2 hours in an empty oven at 180 °C
